Breaking Down the Average Paint Booth Installation Cost
When planning for a new facility or upgrading an existing one, understanding the paint booth installation cost is crucial. A paint booth is more than just a box; it's a critical piece of equipment designed to paint items safely and efficiently. For automotive service, collision, or industrial facilities, a well-chosen and properly installed paint booth ensures compliance, boosts productivity, and safeguards your team.

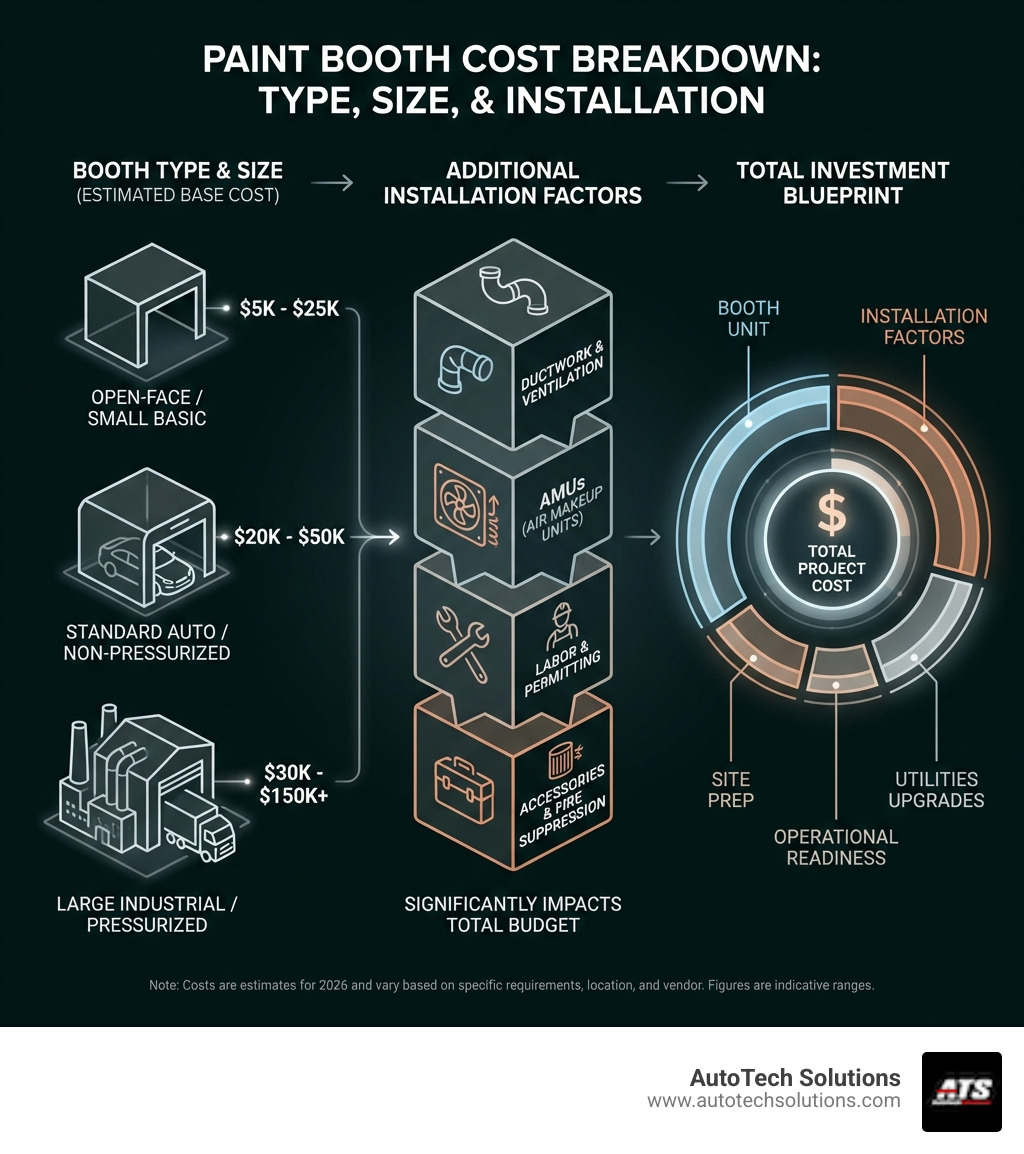

Here's a quick look at typical paint booth costs:
- Small, Basic Booths: $10,000 - $25,000
- Standard Auto Shop Booths: Starting at $20,000
- Open-Face Booths: $5,000 - $10,000
- Non-Pressurized Enclosed Booths: $20,000 - $50,000
- Pressurized Enclosed Booths: $30,000 - $100,000
- Large Industrial/Truck Booths: Starting at $50,000 to $150,000+ for custom solutions
The total investment, however, goes beyond the booth's purchase price. Factors like installation, required accessories, and ongoing operational expenses significantly impact your budget. This guide will help you blueprint your investment, covering everything from different booth types to hidden costs and smart budgeting tips.
When we talk about the paint booth installation cost, we have to look at the wide spectrum of businesses we serve. A small hobbyist shop in Novi, Michigan, has vastly different needs (and budgets) compared to a high-volume collision center in Charlotte, North Carolina.
For a standard automotive shop, you are generally looking at a starting price of $20,000 for the booth itself. If your business scales up to service heavy-duty trucks or trailers, that entry point jumps to at least $50,000. On the high end, custom-built industrial solutions designed for unique operational flows can reach $150,000 or more.
To help you visualize the baseline equipment costs, we’ve put together a comparison table of the most common booth types:
| Booth Type | Typical Cost Range (Equipment Only) | Best Use Case |
|---|---|---|
| Open-face | $5,000 – $10,000 | Small parts, furniture, or wood finishing. |
| Non-pressurized | $20,000 – $50,000 | Budget-friendly auto refinishing with basic safety. |
| Pressurized | $30,000 – $100,000 | High-quality automotive finishes; minimizes debris. |
| Industrial/Truck | $50,000 – $150,000+ | Large vehicles, aircraft, or heavy machinery. |
Cost Ranges by Booth Type
The "style" of the booth is often the biggest fork in the road for your budget.
- Open-Face Booths: These are the most economical, ranging from $2,700 for a tiny 6'x7' unit to about $5,871 for larger 18' wide versions. They are great for parts but aren't suitable for full vehicle resprays where dust control is paramount.
- Non-Pressurized Booths: A solid middle ground. These enclosed booths use exhaust fans to pull air through, but they don't "push" filtered air in. You can find small versions for as low as $3,000, but commercial automotive versions usually sit in the $20,000 to $50,000 range.

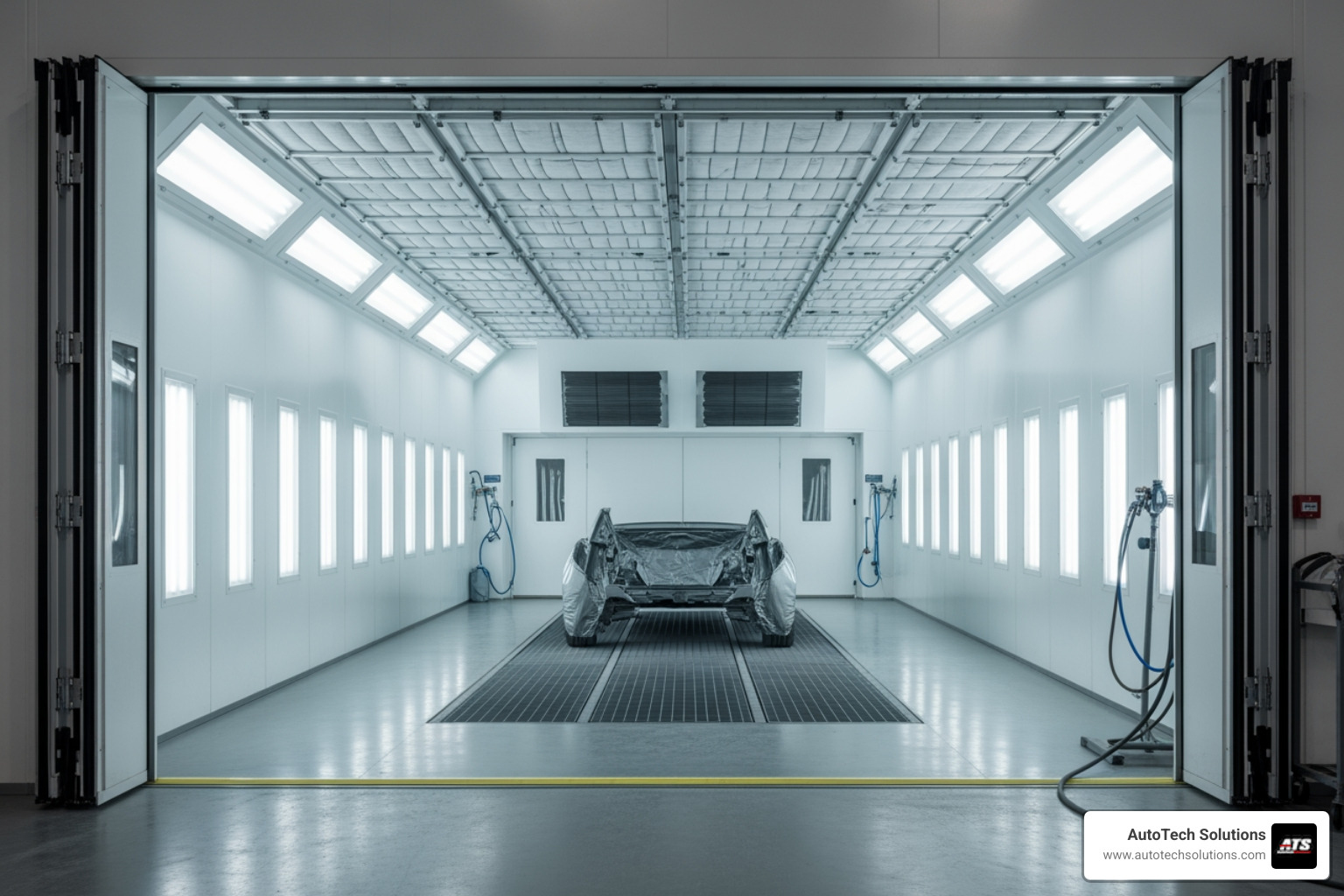

- Pressurized Booths: The gold standard for collision centers. These booths use an intake fan to create positive pressure, ensuring that when you open the door, air blows out rather than sucking dust in. These range from $30,000 to $100,000 depending on features like heated curing.
- Factory-Standard vs. Custom-Engineered: A factory-standard booth is like buying a suit off the rack—it fits most, and it’s cheaper. Custom-engineered booths are custom to your specific building dimensions or specialized workflow. Expect a 15-25% premium for custom engineering.
Size and Capacity Considerations
Size matters—not just for what you can fit inside, but for the airflow required to keep it safe.
- Small Booths: Usually under 10 feet wide (3000mm), ideal for motorcycles or small parts. A motorcycle-sized booth package can cost around $4,300.
- Standard Width: Most auto booths are 14' wide. A basic single-skin automotive booth (14' x 9' x 27') without curing capabilities costs about $14,000.

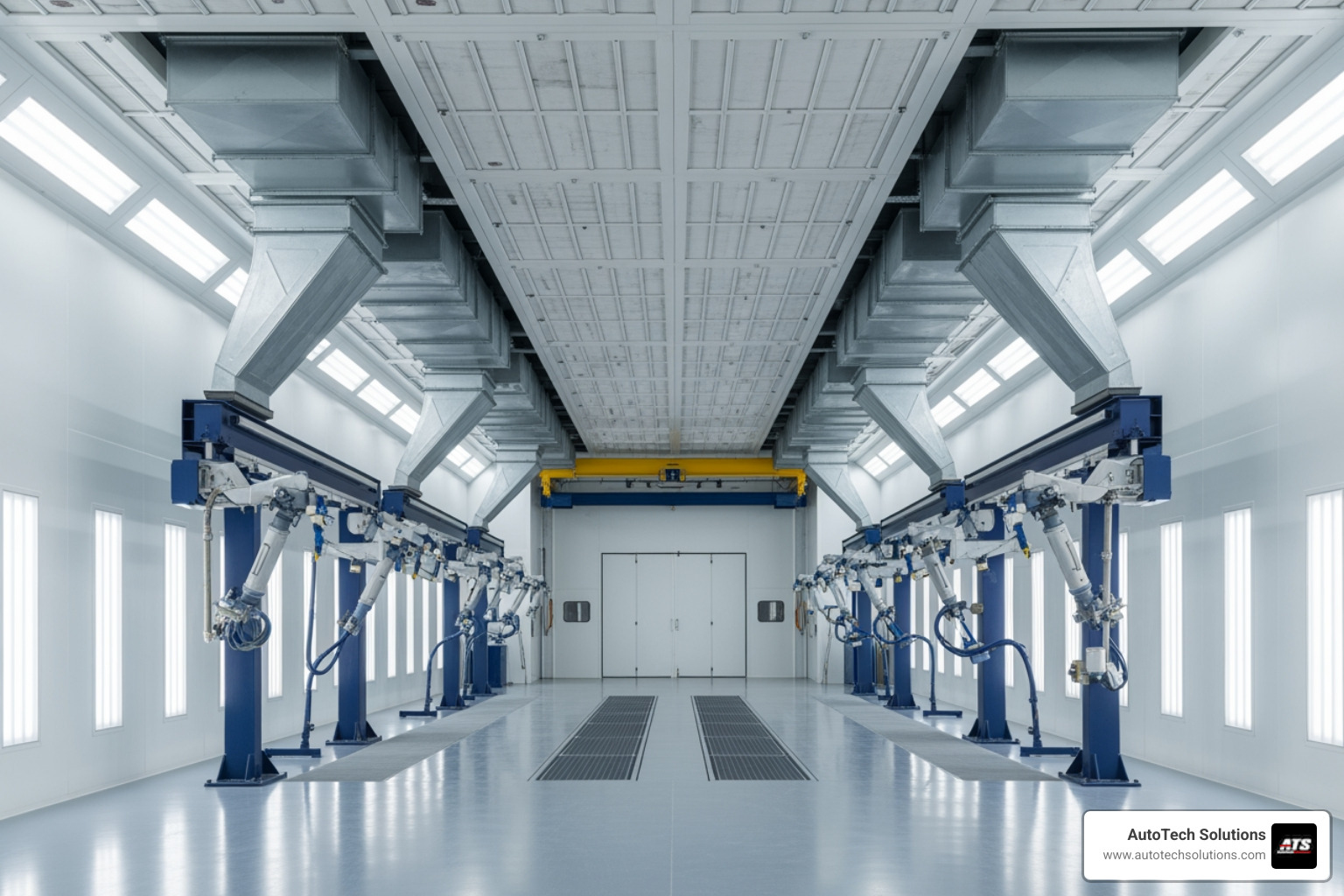

- Large Industrial: If you're painting 65-foot trailers, you're looking at something like the Evolution XL Side Draft Truck Booth, which carries a price tag of approximately $51,000 for the equipment alone.
If you are unsure which size fits your footprint, we highly recommend looking into shop design and consulting to ensure you aren't overbuying or, worse, under-sizing your workspace.
Key Factors Influencing Your Total Investment
Buying the booth is only half the battle. The paint booth installation cost is heavily influenced by how that booth moves air and how it complies with strict safety standards.
How Size and Style Impact Paint Booth Installation Cost
The way air flows through your booth dictates the complexity of the installation:
- Crossdraft: Air moves from one end of the booth to the other. It’s the simplest to install and usually the cheapest.
- Downdraft: Air comes from the ceiling and exits through a pit in the floor. This provides the cleanest finish but requires significant concrete work (more on that later). Downdraft booths range from $16,000 to $35,000 for the equipment.
- Side Downdraft: Air comes from the ceiling and exits through side walls. It's a great compromise if you can't dig a pit, but it often requires double the ductwork, which adds to the labor cost.
Each of these styles must meet NFPA 33 and OSHA standards. For example, crossdraft booths require 100 Feet Per Minute (FPM) of airflow across the face area, while downdraft booths require 50 FPM across the footprint. Meeting these specs often requires specific fan and motor configurations that can nudge the price up. For more specialized advice, check out our collision center solutions.
The Role of Air Make-Up Units (AMU)
An Air Make-Up Unit (AMU) is often the "hidden" expense that surprises shop owners. An AMU replaces the air that the exhaust fan pulls out of the building.
Is it necessary? If your booth exhausts all the air in your building every 20 minutes, you’ll create a vacuum (negative pressure) that makes doors hard to open and pulls in unfiltered dust. More importantly, in our service areas like Raleigh or Novi, you don't want to exhaust all your expensive heated air in the winter without replacing it.
An AMU can cost as much as the booth itself, often ranging from $15,000 to $50,000. However, it allows for heated "bake" cycles, which can cut drying times from hours to minutes.
Beyond the Booth: Hidden Installation and Operational Expenses
We often tell our clients in the Carolinas and Michigan to budget for the "unseen." The booth might arrive on a truck for $20,000, but getting it running involves several specialized trades.
Ductwork and Electrical Paint Booth Installation Cost
Ductwork is a major variable.
- Plain Exhaust Duct: $15 – $60 per foot.
- Spiral Duct: $36 – $125 per foot. Spiral duct is preferred for long runs or high-pressure systems because it offers less static resistance.
- Electrical: You’ll need a certified electrician. If your shop only has single-phase power but your booth requires three-phase (common for large 5HP+ motors), you might need a phase converter or a utility upgrade, which can cost thousands.
Properly integrating these systems into your building's skeleton is part of our installations, upfits, and facility buildouts service.
Ongoing Maintenance and Energy Consumption
Once the booth is humming, the costs don't stop.
- Filters: Depending on your volume, you might spend $500–$2,000 a year on intake and exhaust filters.
- Energy: Large motors and heating units consume significant electricity and gas. We recommend looking into "Energy-Smart" VFDs (Variable Frequency Drives) which can reduce energy usage by up to 50% by slowing the fans during flash-off periods.
- Construction: If you chose a downdraft booth, the concrete pit work can add $5,000 to $15,000 to your initial setup cost.
To keep these costs from spiraling, regular service, repair, and equipment support is vital to ensure your motors aren't working harder than they need to.
Turnkey vs. DIY: Choosing the Right Installation Path
It’s tempting to look at a "delivery-only" price and think, "My guys can put that together." In our experience, DIY paint booth installation is often a recipe for a headache.
- Delivery-Only: You save on the upfront labor, but you are responsible for permits, fire suppression integration, electrical, and ducting. If it’s not perfectly level, the doors won't seal, and your "clean room" becomes a "dust room."
- Turnkey Installation: We handle everything from the concrete to the final permit. While the labor cost for a professional install can range from $5,000 to $15,000+, it ensures you are compliant with local Michigan or North Carolina fire codes.
Attempting to bypass professional installation can lead to regulatory penalties from OSHA or the EPA, which far outweigh the initial savings. For a look at the high-quality equipment we install, browse our automotive products.
The Risks and Rewards of Used Equipment
You can find used paint booths for $5,000 on secondary markets. While this looks like a steal, consider the risks:
- Disassembly/Reassembly: Moving a booth often damages the panels.
- Compliance: Older booths may not meet current NFPA 33 standards.
- Efficiency: Older motors and burners are energy hogs.
- Missing Parts: Finding a replacement fan for a 20-year-old discontinued booth is no fun.
If you buy used, factor in at least $2,000–$5,000 for refurbishing and new filters before you even start the installation.
Frequently Asked Questions about Paint Booth Installation Cost
Is an Air Make-Up Unit a necessary expense?
In many cases, yes. If you plan to do any volume of painting or if you live in a climate with extreme temperatures (like our Michigan winters), an AMU is essential for quality control and worker comfort. It also allows for heated curing, which is the only way to make a high-volume shop profitable.
What is the price difference between a standard and custom booth?
A standard booth is mass-produced and ready to ship. A custom booth requires an engineer to sign off on the drawings and a manufacturing line to be reset for your specific dimensions. This usually adds about 10% to 15% to the equipment cost and can extend lead times by several weeks.
How much does concrete work cost for a downdraft booth?
For a standard automotive booth, expect to pay between $5,000 and $10,000 for a professional concrete contractor to cut, dig, and pour a downdraft pit and tunnel. This is a specialized job; the pit must be perfectly level and structurally sound to support the weight of the booth and the vehicles inside.
Conclusion
Navigating the paint booth installation cost doesn't have to be a guessing game. By understanding the variables—from the style of the booth to the necessity of an Air Make-Up Unit—you can build a budget that protects your bottom line while ensuring a top-tier finish.
