Why Choosing the Right Heavy Duty Car Ramps for Sale Matters for Your Shop
If you're evaluating heavy duty car ramps for sale for your automotive service facility, here's a quick reference to the most important options and what sets them apart:
Top Heavy Duty Car Ramp Categories for Professional Shops:
| Ramp Type | Typical Capacity | Best For |
|---|---|---|
| Fixed steel service ramps | 4,000–20,000+ lbs | High-volume service bays |
| Hydraulic adjustable ramps | 10,000–11,000 lbs GVW | Low-clearance vehicles, multi-task lifting |
| Heavy-duty aluminum loading ramps | 3,000–10,000 lbs per ramp | Fleet loading, trailer and transport work |
| Reinforced polymer ramps | Up to 33,000 lbs | Lightweight portability, corrosion resistance |
Running a productive shop means keeping vehicles elevated safely, technicians working efficiently, and equipment downtime as close to zero as possible.
The wrong ramps slow everything down. The right ones — matched to your vehicle mix, bay layout, and load requirements — keep your team moving.
With over 2,000 heavy duty ramp products currently available across major suppliers, the options can feel overwhelming fast. Weight ratings, materials, ramp configurations, hydraulic vs. fixed — every detail affects how well a ramp performs under real shop conditions.
This guide cuts through the noise. We'll cover what specs actually matter, which ramp types suit which applications, and what safety standards professional facilities need to meet.
Easy heavy duty car ramps for sale glossary:
Key Specifications for Heavy Duty Car Ramps for Sale
When buying for a professional shop, consumer-grade gear simply won't cut it. Fleet maintenance, heavy-duty commercial vehicles, and high-turnover service bays demand equipment built to withstand relentless daily abuse. To make an informed purchasing decision, you need to understand the structural metrics that dictate a ramp’s performance and safety limits.

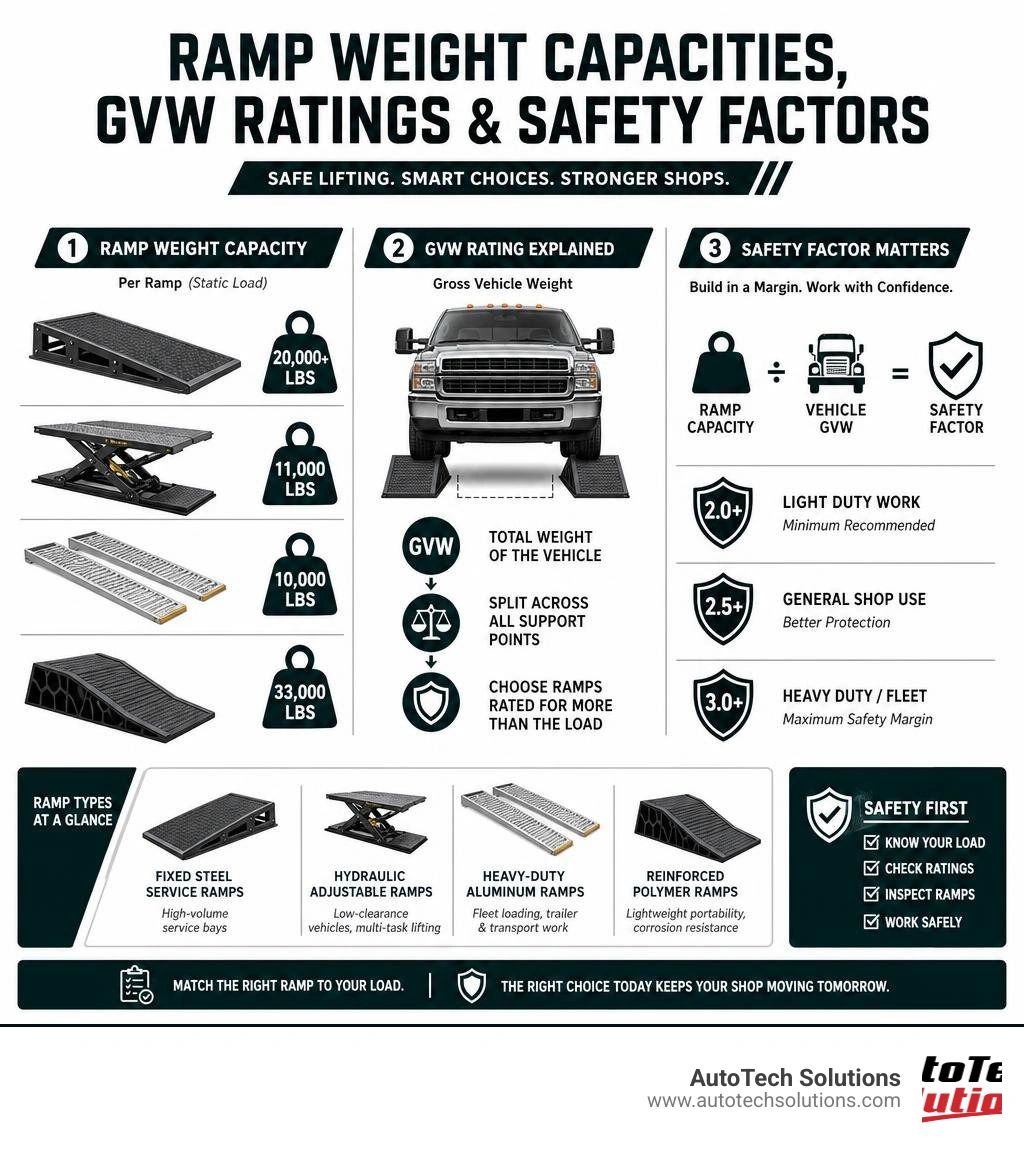

Gross Vehicle Weight Rating (GVWR) vs. Ramp Capacity
One of the most common points of confusion when browsing heavy duty car ramps for sale is the difference between a vehicle's Gross Vehicle Weight Rating (GVWR) and the rated capacity of a ramp set.
- Ramp Capacity: Typically advertised as either "per pair" or "per ramp." For example, a ramp set rated at 10,000 lbs capacity means the pair can safely support up to 10,000 lbs across the two ramps (5,000 lbs each).
- GVWR: This is the maximum operating weight of a vehicle as specified by the manufacturer, including passengers, cargo, and fluids.
When lifting only one axle of a vehicle (which is the standard use case for service ramps), that axle carries a portion of the total vehicle weight—usually about 50% to 60% for passenger cars and up to 70% for heavy-duty front-engine work trucks. However, to maintain a professional safety margin, we always recommend choosing ramps with a capacity rating that exceeds the total GVWR of the heaviest vehicle you service. If you are servicing fleet vans with a GVWR of 10,000 lbs, do not cut it close with a 10,000 lb capacity ramp set; step up to a heavy-duty 12,000 lb or 16,000 lb system to ensure your crew works with a comfortable safety buffer.
For a deeper look at managing your shop's lifting and service capabilities, check out our Automotive Equipment Supply Complete Guide.
Material Matters: Steel, Aluminum, and Polymers
Ramp construction dictates not only how much weight the system can hold, but also how portable, durable, and weather-resistant it will be in your facility. Our team at AutoTech Solutions has broken down the three primary materials used in commercial-grade ramps:
| Feature | Solid Steel Ramps | Aircraft-Grade Aluminum | Reinforced Polymer (PP) |
|---|---|---|---|
| Durability | Extremely High; handles impact well | High; resistant to bending | Moderate to High; can crack under extreme pinpoint loads |
| Weight-to-Strength | Heavy; often requires wheels/handles | Excellent; incredibly light for its capacity | Outstanding; ultra-lightweight |
| Corrosion Resistance | Low to Moderate (requires powder coating) | High; naturally rust-resistant | Impervious to rust, salt, and chemicals |
| Best Used For | Dedicated, stationary service bays | Mobile service, trailer loading, wet/muddy conditions | Quick oil changes, low-profile inspections |
| Typical Capacity Range | 10,000 to 40,000+ lbs | 3,000 to 10,000 lbs per ramp | 12,000 to 33,000 lbs |
Investing in premium materials protects your technicians and protects your bottom line by reducing equipment replacement cycles. For more high-capacity solutions, explore our catalog of Heavy Duty Shop Equipment.
Types of Professional-Grade Heavy Duty Ramps
No single ramp design fits every commercial application. Depending on whether your technicians are performing rapid oil changes, loading heavy equipment onto flatbeds, or servicing low-slung fleet vehicles, you will need a specific configuration to maximize shop efficiency.
Choosing the correct type of ramp is a cornerstone of modern Auto Equipment Sales, ensuring that the machinery you purchase aligns perfectly with your everyday workflow.
Fixed and Low-Profile Heavy Duty Car Ramps for Sale
Fixed service ramps are the traditional workhorses of the automotive shop. They feature a solid, non-adjustable incline and a flat top platform with integrated wheel stops. For modern service bays, low-profile variations have become absolutely essential.
Modern commercial vehicles and low-clearance fleet vehicles often feature low ground clearance and extended front bumpers. Standard ramps can scrape or damage front air dams before the tires even touch the incline. Professional-grade low-profile ramps solve this by utilizing a gentler approach angle—typically between 7 and 11 degrees.
Excellent examples of this category include the Garvee Heavy Duty Car Ramps 33,000 LB Capacity 6.7 Inch High Lift Reinforced PP Non-Slip Portable Handles Home Garage , which provide an exceptionally high load capacity while maintaining a manageable incline. For shops seeking reliable, high-traction polymer options, the CAMCO - Heavy Duty Auto Ramps - Murdoch's Ranch & Home Supply offer excellent stability and a structured grid pattern to prevent tire slippage during approach.
Hydraulic Lift and Adjustable Heavy Duty Car Ramps for Sale
For shops that need the clearance of a mid-rise lift without dedicating a permanent bay, hydraulic adjustable ramps are a game-changer. These systems combine a drive-on ramp with an integrated hydraulic bottle jack. Once the vehicle is driven onto the platform, the technician uses the hydraulic pump to raise the platform vertically, providing significantly more working room underneath.
These multi-ton adjustable systems are perfect for heavy-duty fleet service where variable height is required for transmissions, exhaust systems, or suspension work. High-quality options like the 5-Ton Low Profile Adjustable Hydraulic Lift Auto Service Steel Ramps (2-Piece) and the Lafati 2-Pack Hydraulic Car Ramps: Heavy-Duty Vehicle Ramps ... allow technicians to lift vehicles safely and lock them into place using mechanical safety pins.
By integrating the lifting mechanism directly into the ramp, these systems reduce the need for external Heavy Duty Jacks during routine under-car maintenance.
Heavy-Duty Aluminum Loading Ramps
If your operations involve transporting equipment, loading fleet vehicles onto flatbeds, or moving heavy commercial machinery, you need heavy-duty loading ramps. Unlike service ramps, loading ramps are long, single-span structures designed to bridge the gap between the ground and a truck bed or trailer deck.
Because these ramps must be handled, positioned, and stored manually by your crew, aluminum is the undisputed king of this category. It provides the necessary strength to support multi-ton commercial vehicles while remaining light enough for one or two technicians to lift without straining.
Premium options such as Aluminum Loading Ramps – GEN-Y HITCH offer robust weight capacities and are engineered with heavy-duty structural reinforcement to withstand heavy commercial use. For versatile fleet operations, the Garvee Aluminum Car Ramps 2-Pack Heavy-Duty 10000 Lbs Capacity 96x15 i and the Garvee 6000 LBS Heavy Duty Aluminum Ramps with Top Hook & Non-Slip Rungs for Trucks & Lawn Equipment, Adjustable Straps, Aircraft-Grade Alloy feature positive-lock top hooks, adjustable safety straps, and aggressive serrated rungs for maximum traction in wet, muddy, or icy conditions.
To explore a wider array of specialized loading and service ramps, you can browse Car Ramps - Loading and Service Ramps or check out general commercial availability via Heavy Duty Car Ramps - Amazon.com .
Essential Safety Features and Shop Best Practices
When vehicles are elevated above your technicians, safety is not just a priority—it is the law. Using professional-grade shop equipment requires strict adherence to safety protocols and a clear understanding of equipment limitations.
To maintain a safe and compliant shop environment, ensure your team follows these critical guidelines:
- Always Use Wheel Chocks: Never rely solely on the ramp's integrated wheel stops or the vehicle's parking brake. The moment a vehicle is settled on the ramp platforms, heavy-duty rubber wheel chocks must be placed behind the tires remaining on the ground.
- Verify Surface Conditions: Ramps must only be used on flat, level, and solid concrete surfaces. Utilizing ramps on asphalt, dirt, or uneven bay floors can cause the ramps to tilt, slide, or sink, leading to catastrophic structural failure.
- Inspect Before Every Use: Train your technicians to inspect ramps daily for hairline cracks in polymer models, structural degradation in aluminum models, or rust and structural bending in steel units. If any defect is found, the ramp must be decommissioned immediately.
- Confirm Tire Width Compatibility: The tire must fit entirely within the width of the ramp platform. If a dual-rear-wheel truck or an oversized commercial tire overhangs the edges of the ramp, the weight distribution will be uneven, risking a rollover or ramp collapse.
- Clean Ramps Regularly: Oil, grease, and road grime destroy traction. Clean your ramps with heavy-duty degreaser regularly to ensure the non-slip surfaces can do their job when wet vehicles drive up.
For a comprehensive breakdown of professional garage safety standards and equipment protocols, read our Automotive Shop Equipment Complete Guide.
Frequently Asked Questions About Heavy Duty Ramps
How do you determine the correct weight capacity for commercial shop ramps?
To find the correct capacity, look at the Gross Vehicle Weight Rating (GVWR) on the driver’s side door jamb of the heaviest vehicles your shop services. For safety, select a ramp set with a weight capacity that meets or exceeds that total GVWR. Even though the ramps only support one axle at a time, this provides an essential 2x safety margin that accounts for dynamic weight shifting as the vehicle drives up the incline.
Are aluminum or steel ramps better for heavy-duty fleet maintenance?
It depends on your primary use case. If your ramps will remain stationary in a service bay, steel offers unmatched durability and weight capacity at a lower price point. However, if your technicians need to move the ramps around the shop, take them on mobile service calls, or use them outdoors for loading trailers, aluminum is the superior choice due to its high weight-to-strength ratio and natural resistance to rust and road salt.
Can hydraulic service ramps replace traditional jack stands in a professional garage?
While hydraulic service ramps provide exceptional stability, larger surface areas, and integrated mechanical lock pins, they do not completely replace jack stands. Ramps require the vehicle's wheels to remain on the platform. For brake jobs, suspension overhauls, tire rotations, or any service requiring wheel removal, traditional heavy-duty jacks and jack stands are still mandatory.
Conclusion
Equipping your shop with the right heavy duty car ramps for sale is an investment in your team's safety, efficiency, and overall daily productivity. By matching your specific vehicle mix with the correct ramp capacities, materials, and configurations, you can keep your service bays running smoothly.
