Choose an Automotive Alignment Rack That Protects Bay Throughput
Choose an automotive alignment rack based on the work your shop performs, the space available, and how much technician travel you can remove from each job. Fixed 3D tower systems fit dedicated, high-volume bays and automate camera height tracking as the lift moves. Towerless portable systems suit flexible layouts and commercial operations that need to measure trucks and trailers across multiple axles.
The right system helps reduce setup delays, supports repeatable measurements, and keeps alignment work moving without turning a technician into a runner between the rack and a fixed console. Features such as passive battery-free targets, fast clamps, LED status cues, guided software, and tablet operation can make a meaningful difference in daily cycle time.
For busy tire, collision, and fleet service facilities, an alignment rack is not just a lift. It is a connected workflow station that affects labor efficiency, diagnostic confidence, and profitable bay capacity.
AutoTech Solutions Staff can help your team evaluate alignment lift rack configurations, installation needs, and support requirements for your facility.
Know your automotive alignment rack terms:
Key Types of Automotive Alignment Rack Systems for Modern Bays
Selecting the ideal equipment begins with understanding your bay dimensions, ceiling heights, and daily throughput requirements. Modern commercial facilities cannot afford bottlenecked bays caused by sluggish alignment setups. Integrating the proper machinery into your workflow—as outlined in our wheel service equipment guide—allows your technicians to perform precision checks quickly and accurately.

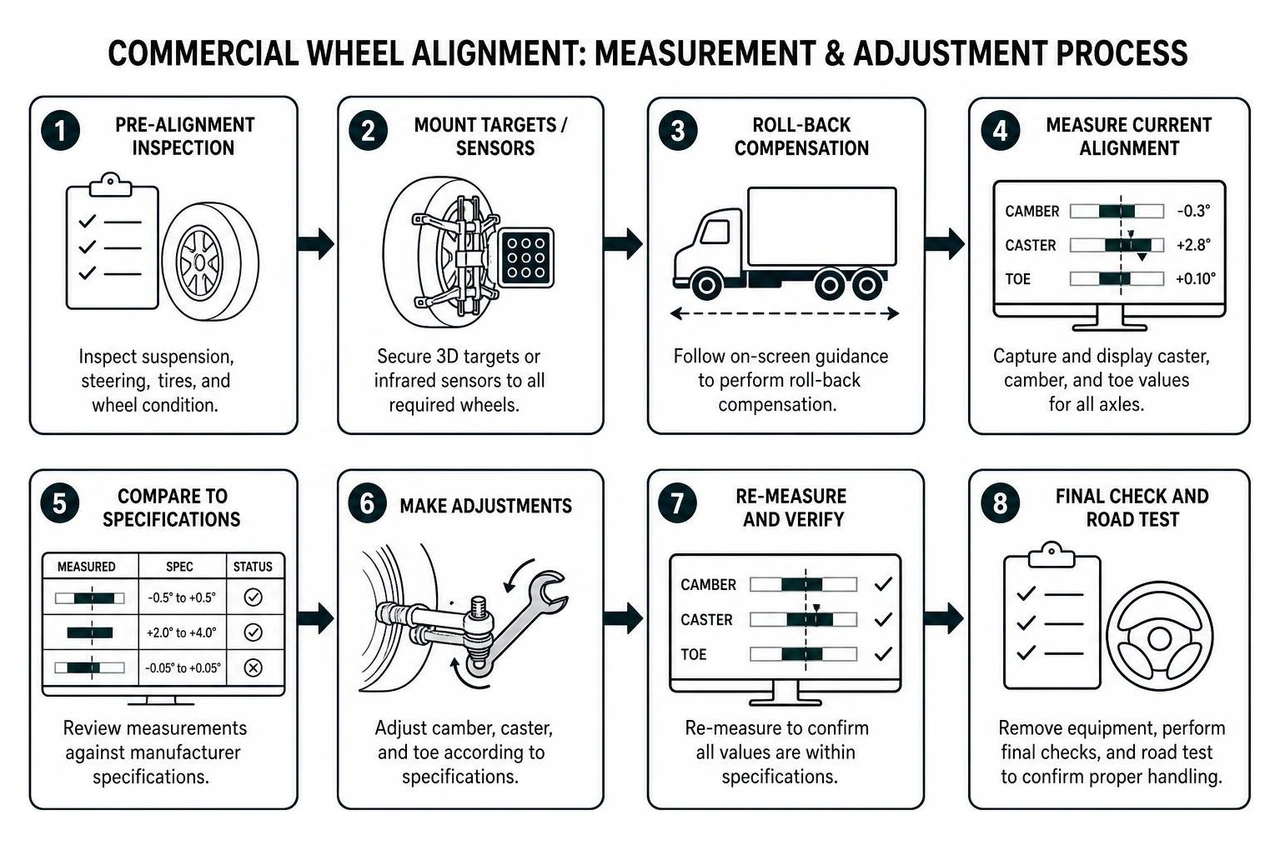

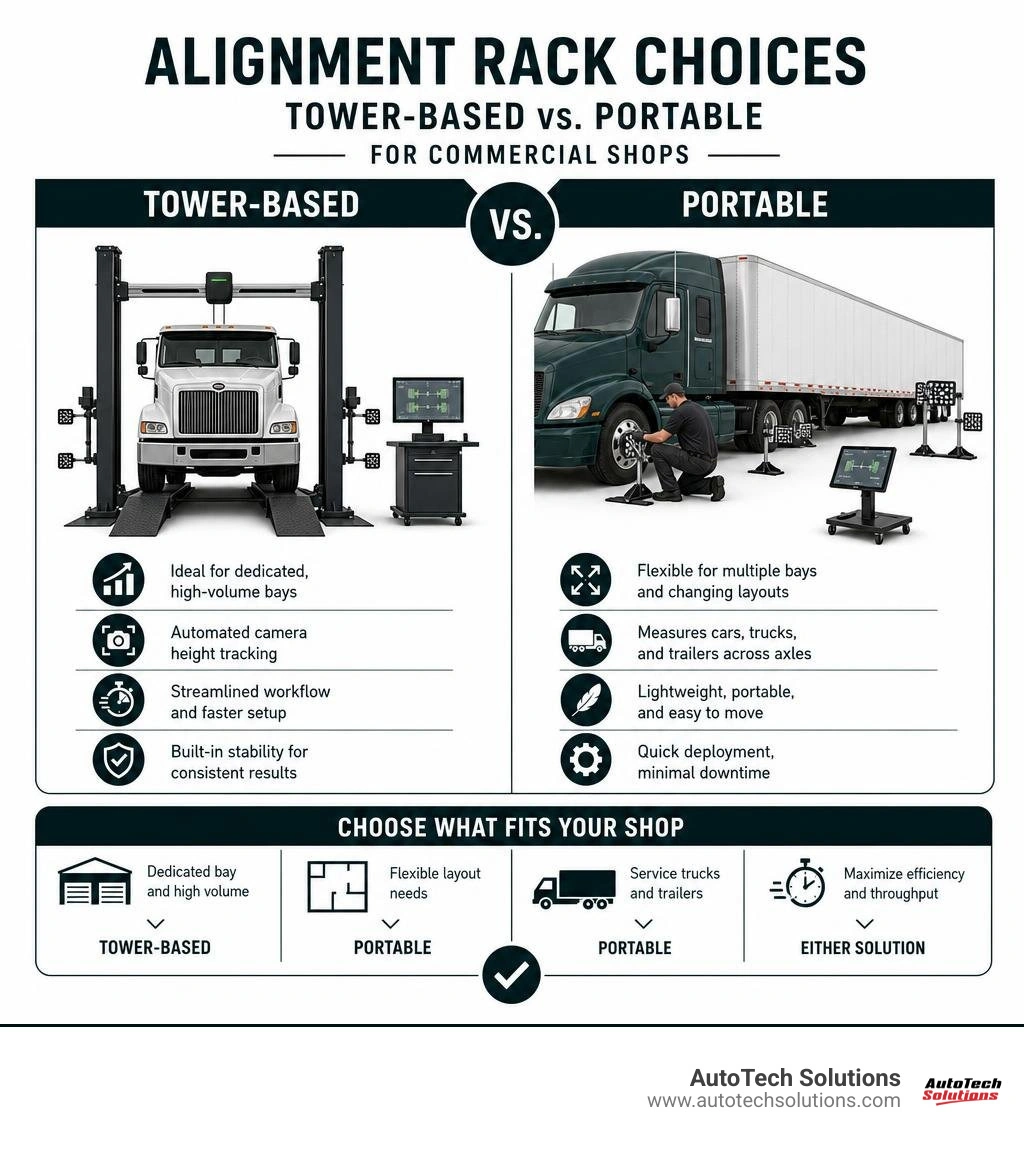

Commercial operations generally choose between two primary architectures: fixed 3D optical tower systems and portable, towerless multi-sensor systems. Both configurations deliver precise geometry measurements, yet they cater to distinct shop layouts and operational models.
| Feature | Fixed 3D Optical Tower Systems | Towerless Portable Systems |
|---|---|---|
| Primary Bay Footprint | Dedicated bay with fixed front clearance | Flexible; works across multiple flat bays, pits, or lifts |
| Tracking Mechanism | High-definition optical 3D camera towers | Infrared CCD sensors mounted directly to wheels |
| Target Maintenance | Zero electronics; battery-free passive targets | Electronic sensor heads; periodic battery charging required |
| Best Vehicle Applications | Passenger vehicles, SUVs, light commercial vans | Medium-duty, heavy-duty commercial trucks, multi-axle trailers |
| Operator Interface | Centralized console PC and secondary display | Handheld mobile PC tablet with wireless Bluetooth |
| Setup Time Savings | Up to 30% faster via automatic tower tracking | 15–20 minutes saved on multi-axle configurations |
Fixed 3D Tower-Based Automotive Alignment Rack Configurations
Fixed tower systems represent the gold standard for dedicated alignment bays. State-of-the-art platforms, such as the 3D wheel aligner RAV3DTOWER.4, utilize automated motorized tracking towers equipped with HD cameras. As the lift raises or lowers to accommodate the technician's working height, the camera assembly follows the vehicle automatically. This continuous optical tracking eliminates manual camera beam repositioning, which can reduce alignment cycle times by up to 30%.
These systems utilize four-point self-centering clamps compatible with rim clamping capacities from 254 mm to 610 mm (10 to 24 inches), with optional tire grabbers to protect delicate wheel finishes. Visual LED indicator alerts guide technicians during roll-back compensation stages right at the wheel, so there is no need to crane your neck toward a distant monitor.
Towerless Portable Alignment Systems for Heavy-Duty and Multi-Axle Vehicles
For facilities managing commercial fleets or shops with limited square footage, towerless configurations offer exceptional flexibility. Commercial systems like the R5100HD PRO use infrared CCD measuring heads communicating via industrial Bluetooth to deliver rapid data capture.
Because these units require no permanent vertical tower anchored in front of the bay, technicians can perform multi-axle alignments on flat shop floors, pit racks, or four-post alignment lifts. The optical sensors deliver measuring ranges up to 59 feet, allowing shops to align multi-axle heavy trucks and trailers up to eight axles with tire diameters starting at 30 inches. Commercial operators can review local chassis alignment setups at Alignments in Charlotte, NC or consult Auto Repair Shop in Raleigh, NC to see heavy-duty service bays in action.
Core Technologies That Maximize Bay Throughput and Setup Speed
Modern alignment profitability relies on cutting minutes off the pre-alignment setup. In high-volume operations, spending 15 minutes mounting heavy wheel clamps and performing cumbersome runout compensation drains shop revenue and slows down bay scheduling. Equipping your facility with high-grade replacement wheel alignment machine parts and innovative clamp engineering directly solves this operational problem, ensuring rapid turnaround on every service ticket.
Advanced Optical Tracking and Battery-Free 3D Targets
Modern 3D tower systems rely on passive, high-durability reflective targets. Because these targets contain no electronic circuit boards, delicate sensors, or internal batteries, they are lightweight, robust, and virtually maintenance-free. If a technician accidentally drops a passive target during a work shift, it can be wiped clean and placed right back into service without recalibrating delicate electronic internals or replacing broken circuit boards. High-resolution cameras read sub-millimeter position shifts instantly, transmitting real-time caster, camber, and toe coordinates directly to the software suite.
Mobile Tablet Operation vs. Fixed Alignment Consoles
Eliminating the physical travel between the vehicle's adjustment points and a stationary computer cabinet is one of the easiest ways to streamline shop labor. Portable tablet interfaces bring live adjustment readings, animated software guidance, and VIN scanning tools directly under the vehicle chassis. Technicians can view live screen updates without repeatedly walking around the lift rack or climbing up from the service pit.
Whether fine-tuning steering linkages on lowered suspensions—similar to specialty setups discussed at Where to get a lowered car aligned in the Charlotte area? and Cary NC Alignment—or cross-referencing frame measurements using an integrated collision repair alignment system, tablet controllers provide total mobility for the technician and maximize billable bay hours.
Integrating Alignment Systems with Lift Infrastructure and ADAS Calibration
A high-performance alignment system is only as accurate as the lifting surface beneath it. An unlevel lift surface translates directly to inaccurate camber and caster readings, compromising the precision of your alignment diagnostics. Following a rigorous automotive lift installation guide guarantees that slip plates, mechanical turnplates, and runways maintain sub-millimeter level tolerances across all mechanical locking positions.
Precision leveling is also essential for modern driver-assist systems. Whenever technicians perform steering angle adjustments or structural realignments, the vehicle's forward cameras and radar sensors must be calibrated relative to the true geometric thrust line. Proper lift leveling combined with diligent ADAS calibration equipment maintenance ensures that high-precision calibration targets align perfectly with vehicle sensors. Commercial facilities in high-density markets frequently verify their alignment bays to match OEM service standards, such as those found at Wheel Alignment and Suspension Services Near You in Novi, MI and 4 Wheel Alignment.
Evaluating Automotive Alignment Rack Return on Investment and Workflow Speed
Investing in a commercial alignment lift rack offers rapid capital payback through measurable labor savings and preventative tire wear diagnostic upselling:
- Labor Time Reduction: Automated camera movement and no-runout clamps save 10 to 15 minutes per alignment. Across six daily alignments, that frees over an hour of billable technician time every day, allowing your shop to capture additional service volume without adding overhead.
- Diagnostic Revenue: High-speed drive-through audit checks allow service advisors to present color-coded alignment health reports to commercial fleet managers during routine maintenance, turning standard inspections into profitable chassis adjustments.
- Durability and Warranty: Premium commercial systems are supported by comprehensive 3-year parts and 1-year labor warranties, safeguarding shop uptime against unexpected electronic or mechanical failures and ensuring long-term operational peace of mind.
Frequently Asked Questions About Commercial Alignment Racks
How does automatic camera tower movement improve shop efficiency?
Automatic motorized camera towers continuously track the height of the targets as the lift raises or lowers. This eliminates the need for technicians to pause their work to manually adjust the camera beam height, saving time and keeping the optical array locked on target throughout the entire adjustment process.
What is the advantage of battery-free 3D targets over electronic sensor heads?
Battery-free 3D targets use passive optical reflection patterns rather than internal electronics. They require no recharging routines, eliminate downtime caused by drained lithium packs, weigh significantly less on wheel assemblies, and survive accidental shop drops without losing calibration.
Can modern commercial alignment systems service both passenger cars and multi-axle trucks?
Yes. Multi-axle commercial alignment packages include advanced software routines and sensor arrays capable of measuring semi-trucks, tandem tractors, and multi-axle trailers up to eight axles. Interchangeable clamp adapters allow these systems to transition from standard passenger car rims up to large commercial wheels exceeding 30 inches in diameter.
Conclusion
Upgrading your commercial facility with an advanced automotive alignment rack transforms routine tire and chassis service into a high-margin, rapid-turnaround revenue center. By selecting the optimal balance between fixed 3D optical tracking towers and mobile, multi-axle commercial systems, shop owners maximize throughput while delivering flawless precision on modern chassis configurations.
