Why Truck Wheel Alignment Is a Critical Investment for Commercial Service Centers
Truck wheel alignment is one of the most impactful and most overlooked service capabilities in heavy-duty commercial operations.
Here is a quick summary of what shop operators need to know:
| Key Factor | What It Means for Your Shop |
|---|---|
| What it is | A shop service process for measuring and adjusting axle and wheel angles (camber, caster, toe) to manufacturer specs |
| Recommended interval | Alignment checks should be built into fleet maintenance workflows and annual inspection planning |
| Cost per service | $200$600 depending on axle count and vehicle condition |
| Tire savings | Proper alignment capability helps commercial customers extend tire life and reduce avoidable replacement cycles |
| Fuel savings | Fleets have recorded up to a 2% improvement in fuel economy |
| Time per service | Typically 24 hours with professional equipment |
Commercial truck tires average around $500 per unit. Poor alignment conditions can accelerate tire wear, reduce fuel efficiency, and create repeatable cost issues for fleet customers. For service centers, that makes precision alignment equipment a high-value infrastructure investment.
Beyond tire costs, alignment-related geometry issues can increase rolling resistance, place added stress on suspension components, and create handling and safety concerns that commercial shops must be equipped to diagnose accurately.
For automotive service centers and fleet maintenance facilities, the question is no longer whether to offer professional truck alignment services. It is whether your shop has the right systems, equipment, and processes in place to deliver them accurately and efficiently.
This guide covers what your operation needs to know from alignment angles and shop workflow considerations to equipment, service scheduling, and operational best practices.
Truck wheel alignment terminology:
The Fundamentals of Truck Wheel Alignment
At its core, truck wheel alignment is the process of adjusting suspension and axle geometry so wheels are positioned correctly relative to each other and the road surface. In a professional shop environment, this is not just about a straight steering wheel. It is a geometric calibration process involving several critical angles and the equipment required to measure them accurately.
According to Wheel Alignment 101: What Every Truck Owner Should Know, the primary goals are to ensure the truck travels straight without pulling and to maximize the contact patch between the tire and the road.
The core angles measured and adjusted in a commercial alignment bay include:
- Camber: This is the inward or outward tilt of the wheels when viewed from the front. Positive camber means the top of the wheel tilts out; negative means it tilts in. Excessive tilt leads to rapid wear on one side of the tire.
- Caster: Viewed from the side, this is the tilt of the steering axis. It affects steering returnability and high-speed stability.
- Toe: This is the most common adjustment. It refers to whether the front of the tires point toward each other (toe-in) or away (toe-out) when viewed from above.
- Thrust Angle: This measures whether the rear axles are parallel to each other and perpendicular to the chassis centerline. If the thrust angle is off, the truck will "dogtrack," or move down the road at an angle.
- Setback: This occurs when one wheel on an axle is further back than the other, often caused by shifted axles or damaged suspension components. Even a tiny setback of 0.03 degrees can equate to 1/32 of an inch, which adds up to significant tire scrub over thousands of miles.
Identifying Misalignment in Heavy-Duty Systems
For commercial service centers, recognizing out-of-spec geometry is essential to building a repeatable inspection and correction process. According to the Beginners Guide to Truck Alignment, common indicators include:
- Steering Drift: The unit pulls to one side on a level road, indicating the need for measurement and correction.
- Irregular Tire Wear: Patterns like "feathering" or "cupping" signal geometry or component issues that the shop should verify during inspection.
- Vibrations: While often associated with tire balance, vibration can also stem from severe misalignment or worn suspension parts.
- Off-Center Steering Wheel: If the truck tracks straight but the steering wheel is crooked, the alignment setup is flawed.
Critical Alignment Angles and Shop Performance
For a commercial service center, understanding these angles isn't just a technical requirement—it’s a performance metric. Proper truck wheel alignment directly impacts the rolling resistance of the vehicle. When wheels are fighting each other (scuffing), the engine has to work harder to overcome that friction.
This leads to three major operational impacts:
- Fuel Economy: Research shows that a strict alignment schedule can result in a 2% boost in fuel economy across a fleet.
- Driver Fatigue: A truck that pulls or wanders requires constant correction. Over a 10-hour shift, this leads to exhausted drivers and increased safety risks.
- Safety Standards: Misalignment compromises handling during emergency maneuvers, making it harder for drivers to maintain control.
Impact on Fleet Operational Costs
The financial implications of neglecting alignment are staggering. With commercial truck tires costing an average of $500 each, a 3-axle tractor has $5,000 worth of rubber on the ground at any given time.

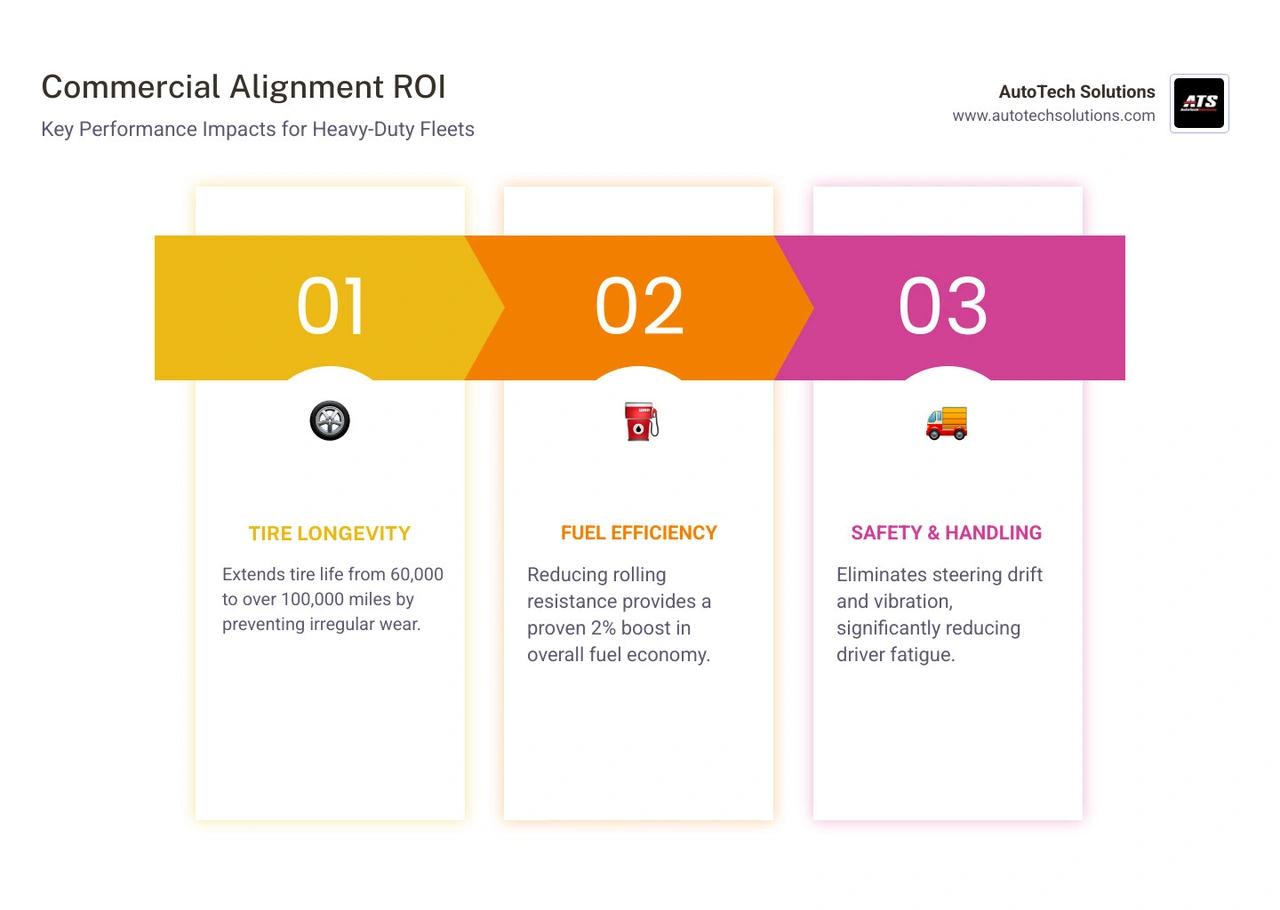

As noted in The Importance of Wheel Alignment for Semi-Trucks, routine alignment programs have been shown to increase tire life from 60,000 miles to over 100,000 miles for long-haul fleets. By investing in professional alignment services, fleets can effectively reduce their tire spend by nearly 40%. When you add the 2% fuel savings mentioned earlier, the ROI for a shop offering these services is clear.
| Alignment Angle | Primary Impact on Tire Wear | Impact on Handling |
|---|---|---|
| Camber | Wear on inside or outside shoulder | Pulls toward side with more positive camber |
| Toe | "Feathering" across the entire tread | Wandering or "darty" steering |
| Caster | Generally minimal direct wear | Steering "heaviness" and poor returnability |
| Thrust Angle | Accelerated wear on all tires | Dogtracking and crooked steering wheel |
Professional Systems for Truck Wheel Alignment
To achieve the millimeter-precision required for Class 8 trucks, "eyeballing it" or using manual strings is no longer sufficient. Modern shops require integrated systems that can handle the sheer scale and weight of heavy-duty vehicles.
At AutoTech Solutions, we specialize in helping shops integrate automotive shop equipment that maximizes bay productivity. This includes everything from the sensors to the lifts that hold the truck in place.
Advanced Equipment for Truck Wheel Alignment
The gold standard in May 2026 is 3D imaging and laser-guided technology. Systems like Hunter Engineering Equipment utilize high-definition cameras and high-visibility targets to map the vehicle's geometry in minutes.
Unlike older systems, these advanced heavy duty shop equipment solutions can:
- Perform full checks in under four minutes.
- Handle multi-axle configurations, including tandem drive axles and trailers.
- Provide digital "before and after" reports to show customers exactly what was corrected.
- Account for "road crown" (the slope of the road for drainage) to ensure the truck drives straight in real-world conditions.
Heavy-Duty Lifts and Diagnostic Integration
A precision alignment is only as good as the platform it’s performed on. For heavy-duty shops, this typically requires a 4-post drive-on lift with a capacity of at least 18,000 lbs. These lifts must feature stainless steel turning radius gauges and internal airline connections to allow technicians to make adjustments without leaving the bay.
Furthermore, alignment should never happen in a vacuum. It must be integrated with heavy duty diagnostic tools to check for worn kingpins, tie rods, or ball joints. If a technician aligns a truck with worn-out bushings, the alignment will be out of spec before the truck leaves the parking lot. This is why automotive equipment installation and service is so vital; your equipment must be perfectly level and calibrated to ensure the data you're getting is accurate.
Operational Standards for Commercial Service Centers
Running a successful alignment bay requires more than just good equipment; it requires a deep understanding of how operating conditions influence vehicle geometry. According to Maximizing Semi Truck Performance Through Proper Wheel Alignment Services, factors like road conditions and load distribution play a major role.
- Road Conditions: Potholes and curbs are common causes of alignment deviation and component damage.
- Load Distribution: Uneven loading can affect frame and suspension position, which influences how a commercial shop should inspect and validate alignment settings.
- Suspension Wear: As bushings and shocks age, they allow for more movement in the system. This makes pre-alignment inspection and diagnostic workflow essential.
Scheduling Routine Truck Wheel Alignment
Frequency is a common point of confusion for fleet managers. While every operation is different, commercial service centers typically build alignment checks into broader maintenance workflows:
- Post Break-in: A new truck should be aligned between 15,000 and 30,000 miles (or at 3 months). This allows the suspension components to settle into their natural positions.
- Routine Checks: Heavy-duty trucks should have their alignment checked every 10,000 to 12,000 miles, or at least once a year.
- Long-Haul Specifics: For trucks logging massive highway miles, many shops align service intervals with tire rotations and major preventative maintenance programs.
Service Provider Selection for Professional Shops
For shop owners looking to upgrade their capabilities, choosing the right partner is essential. At AutoTech Solutions, we focus on shop design and consulting to ensure your bay layout maximizes throughput.
When evaluating a service provider or equipment vendor, look for:
- Technician Certification: Ensure they offer training on the specific software and hardware.
- Calibration Support: Alignment machines are precision instruments that require periodic recalibration to remain accurate.
- Fast Response Times: In the B2B environment, downtime directly impacts bay productivity and revenue.
Frequently Asked Questions about Truck Alignments
What is the average cost of a professional heavy-duty alignment in 2026?
As of May 2026, a professional truck wheel alignment typically costs between $200 and $600. The price varies based on several factors:
- Axle Count: A basic steer axle alignment is less involved than a full multi-axle commercial alignment service.
- Condition: If components are seized or heavily corroded, labor time increases.
- Technology: Shops using high-end laser or 3D systems may charge a premium for the increased accuracy and detailed reporting they provide.
According to Wheel Alignment Service: Why Its Vital for Your Trucks Longevity, this cost is minimal compared to the expense of premature tire failure and fuel waste.
Should alignment be performed during every new tire installation?
For commercial service centers, alignment verification during tire replacement is a best practice. Wheel Alignment for your Truck emphasizes that checking alignment at installation helps protect tire inventory value and supports better long-term fleet operating costs.
How do heavy loads and road conditions affect shop-level alignment settings?
Heavy loads place added stress on suspension bushings and springs. Over time, this changes ride height and geometry. In addition, trucks operating on rough job sites or broken pavement may experience faster alignment drift. Commercial shops should account for these operating conditions when building inspection procedures and setting service recommendations.
Conclusion
Truck wheel alignment is not just a maintenance task; it is a strategic capability for commercial fleets and the service centers that support them. By investing in the right equipment, bay layout, and calibration processes, shops can reduce operational inefficiencies, improve service quality, and protect tire-related ROI for fleet customers.
At AutoTech Solutions, we are dedicated to helping professional shops in Charlotte, Raleigh, Wade, and Novi stay ahead of the curve. From shop design and consulting to the latest in 3D alignment technology, we provide the support you need to minimize downtime and maximize profitability.
Ready to upgrade your shop's alignment capabilities? Explore Professional Shop Equipment today and see how we can help your operation improve throughput, accuracy, and long-term service performance.
